Optimal for professional forestry, orchards of all kinds
254 mm Diameter Capacity branches and logs can be chipped
Wooden blocks of 250mm x 432mm can also be chipped.
Hydraulically fed hopper with Intelligent Electronic Feeding Device (IEFD)
PTO Driven chippper

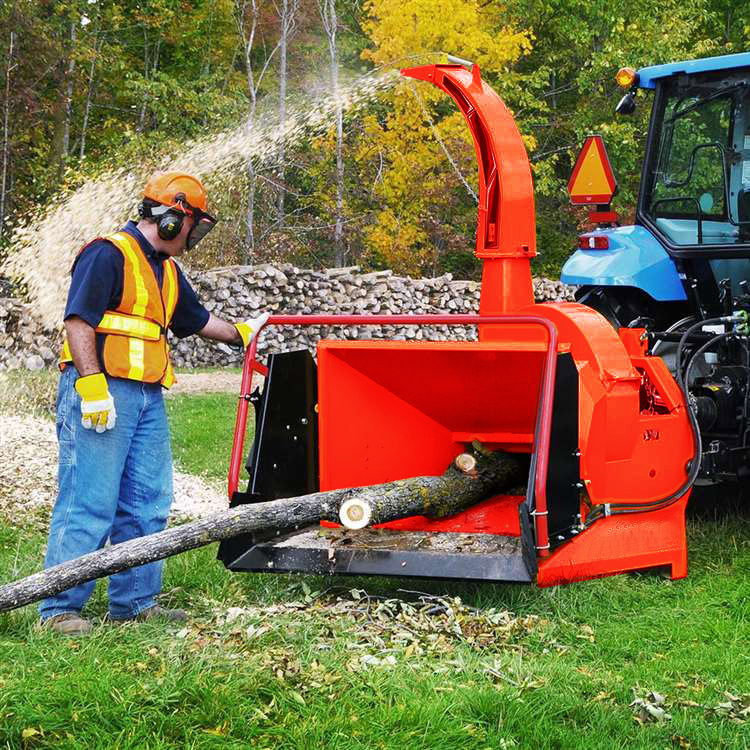

Grizzly 254 Wood Chippers have a PTO powered rotor and hydraulic feed hopper, meaning branches, limbs and brush are control fed for continuous chipping at maximum capacity.
| Drive System: | Direct Drive, PTO with Shearbolt |
| kW (HP) Requirements for Maximum Capacity: | 68 – 90kW (90 – 120HP) |
| kW (HP) Range: | 40 – 112kW (65 – 150HP) |
| Recomended Hydraulic Flow: | 15 – 35 LPM (4 - 8 GPM) |
| Chipper Capacity: | 254 mm |
| Chipper Housing Opening: | 254 x 432 mm |
| Rotor Size: | 91,4 cm |
| Number of Rotor Knives: | 4 Segmented |
| Knife Type: | Hardened Tool Steel |
| Rotor Weight: | 192,8 kg |
| Dimensions LxWxH (Hopper Folded): | 2160 x 1850 x 2540 (mm) |
| Hopper Opening: | 76,2 x 106,7 cm |
| Discharge Hood Rotation: | 285 degrees |
| Rated RPM: | 540 - 1000 |
| Discharge Hood Height: | 2530 mm |
| Weight: | 885 kg |

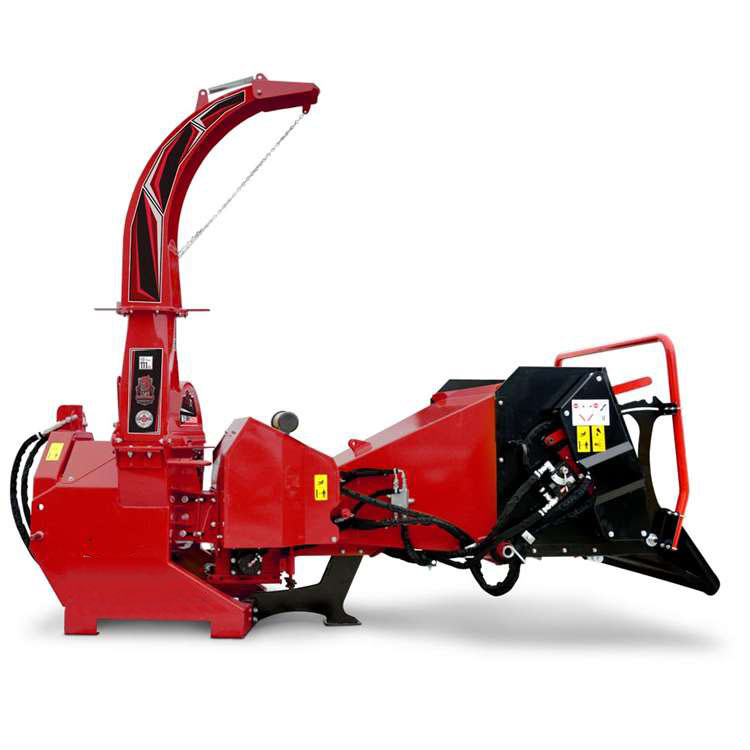

The Grizzly BXR254 from Scanwood Solutions comes standard with a three point hitch, hydraulic operated feed rollers and is ideal for tractors with a kw rating of between 50 – 75 kw. The slab style opening of the Grizzly 254 leads to an impressive chipping capacity. While it is a 254mm chipper, the 432mm horizontal opening lets you feed the chipper with a lot more than you would expect. The chipping capacity is also due to the 920mm steel rotor, weighing a massive 193kg, and comes standard with 4 hardened, reversible, tool grade steel knives. Behind each knife is the twig breaker system which virtually eliminates clogging. The Scanwood Grizzly BXR254 Wood Chipper also comes standard with two hydraulically operated feed rollers which grab hold of branches and aggressively pulls them into the wood chipper. The Grizzly BXR254 Control bar meets the most recent and stringent safety global standards. It features two stop positions as well as forward and reverse functionality. The Grizzly BXRI 254 features the unique IEFD (Intelligent Electronic Feeding Device) system which continually match feed and rotor speed for ultimate performance. The Grizzly BXR254 wood Chipper is manufactured in Canada, comes standard with a standard 3 year warranty fabrication failure.
The Grizzly 254 from Scanwood Solutions comes standard with a three point hitch, hydraulic operated feed rollers and is ideal for tractors with a kw rating of between 50 – 75 kw.

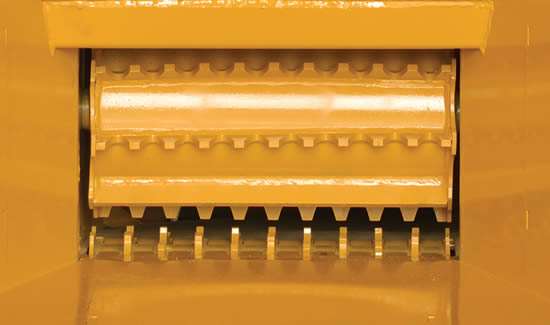

The slab style opening of the Grizzly 254 leads to an impressive chipping capacity. While it is a 254mm chipper, the 400mm horizontal opening lets you feed the chipper with a lot more than you would expect. The chipping capacity is also due to the 92cm steel rotor, weighing 193kg, and comes standard with 4 hardened, reversible, tool grade steel knives.
Behind each knife is the manufacturer’s, equipment, twig breaker system which virtually eliminates clogging.

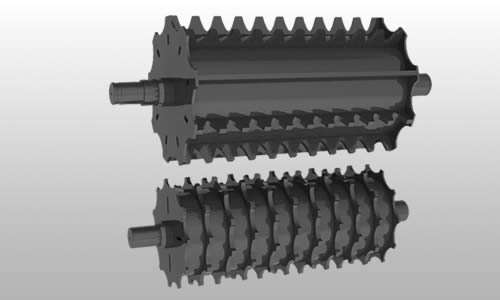

The Scanwood Grizzly 254 Wood Chipper also comes standard with two hydraulically operated feed rollers which grab hold of branches and aggressively pulls them into the wood chipper.

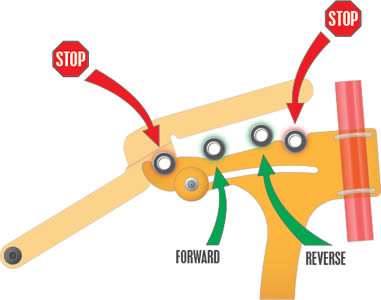

The Grizzly 254 Control bar meets the most recent and stringent safety global standards. It features two stop positions as well as forward and reverse functionality.
The Grizzly 254 features Intelligent Electronic Feeding Device (IEFD) system which continually match feed and rotor speed for fewer stops.
The Grizzly 254 Wood Chipper, proudly manufactured in Canada, comes standard with a 5 year warranty on build quality
The angled cutting edge on the wood chippers in the Forest series result in larger chips. The knives can be adjusted for different chip sizes and sliver breakers ensure an extremely uniform chip quality. The chips are used for combustion in large and medium sized heating systems, as layering on beds as well as on paths and walking areas.
This wood chipper is a strong and compact wood chipper that is optimal for professional forestry. The wood chipper is mounted on the tractors 3-point suspension and a dumper can be mounted at the front of the tractor. The long ejector spout blows the chips over the tractor and directly into the dumper. Required power from 40 – 112 kW. To get the full benefit from the Grizzly BXR254 wood chipper , it is necessary to have a tractor where the seat can be turned 180°. With the chipper parallel to the direction of traffic, the Grizzly BXR254 wood chipper is the perfect solution for row felling or for clear-cutting with a high capacity of 50m3 p/hour. The Grizzly BXR254 wood chipper can be operated with a crane.
